How to dismantle a Suzuki GT750 seat lock

Click the images below for full sized pictures most are around 1200 x 900

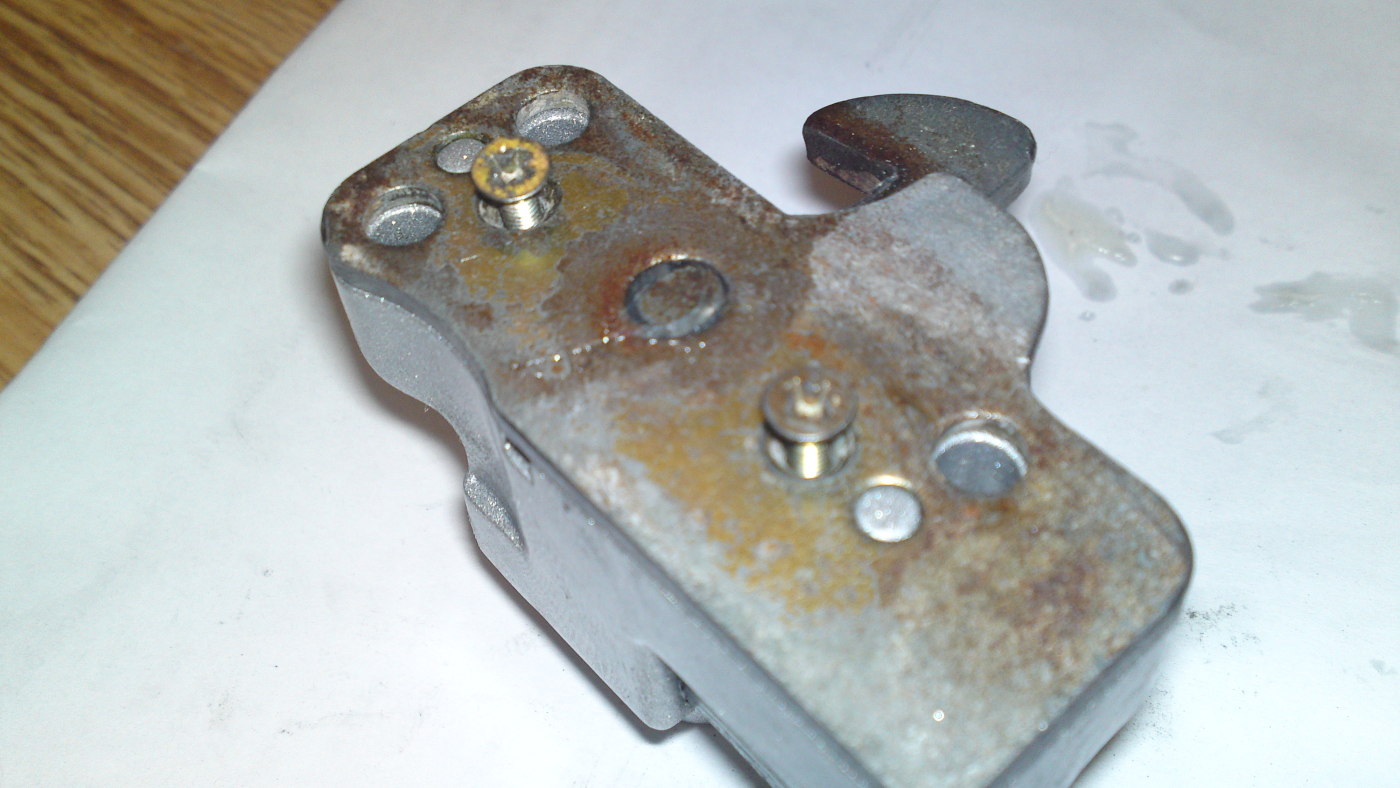

Suzuki GT750 seat lockUnscrew the the 2 countersunk screws and remove the back plate.

Suzuki GT750 seat lock

Remove the small locating plate.



Suzuki GT750 seat lockSeat Lock catch

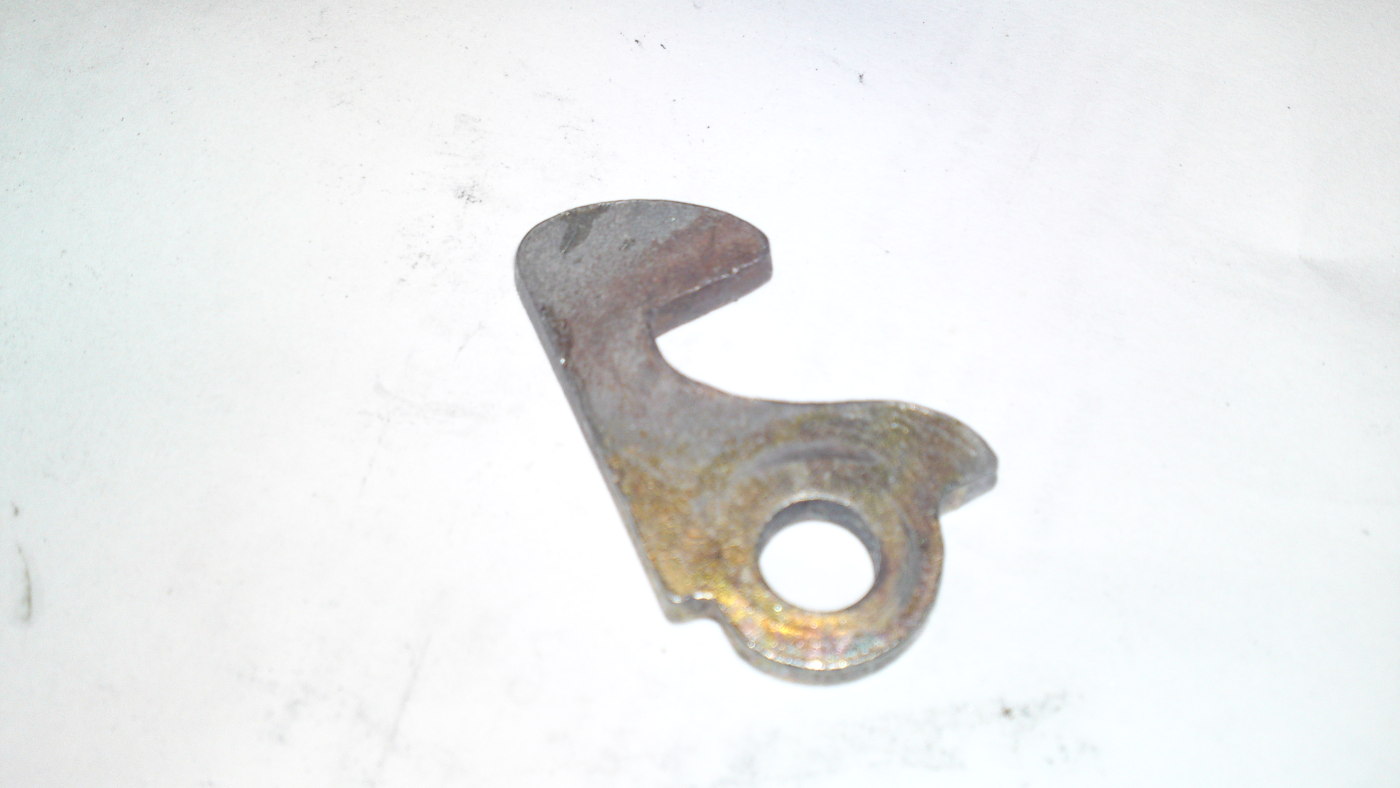

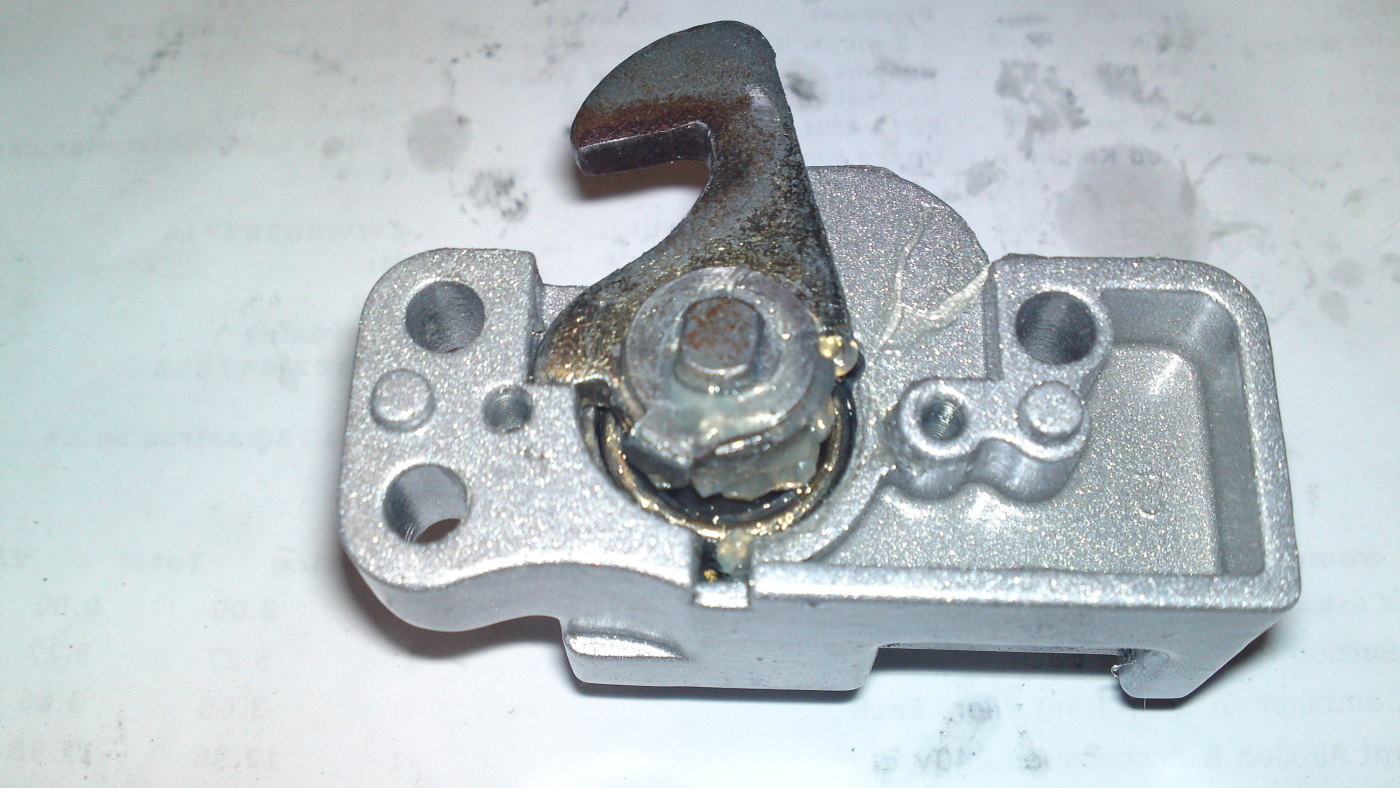

Remove locking catch.

Suzuki GT750 seat lockSeat Lock catch

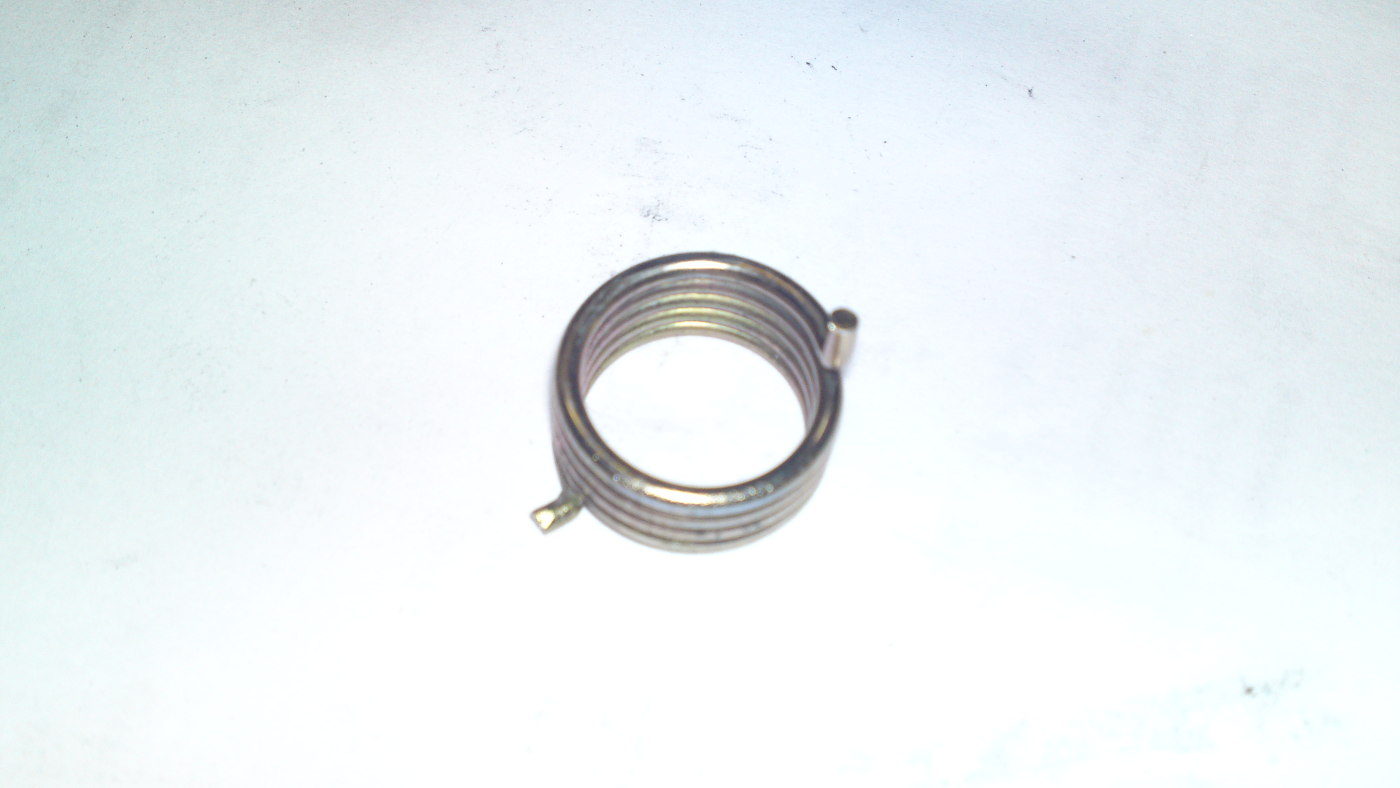

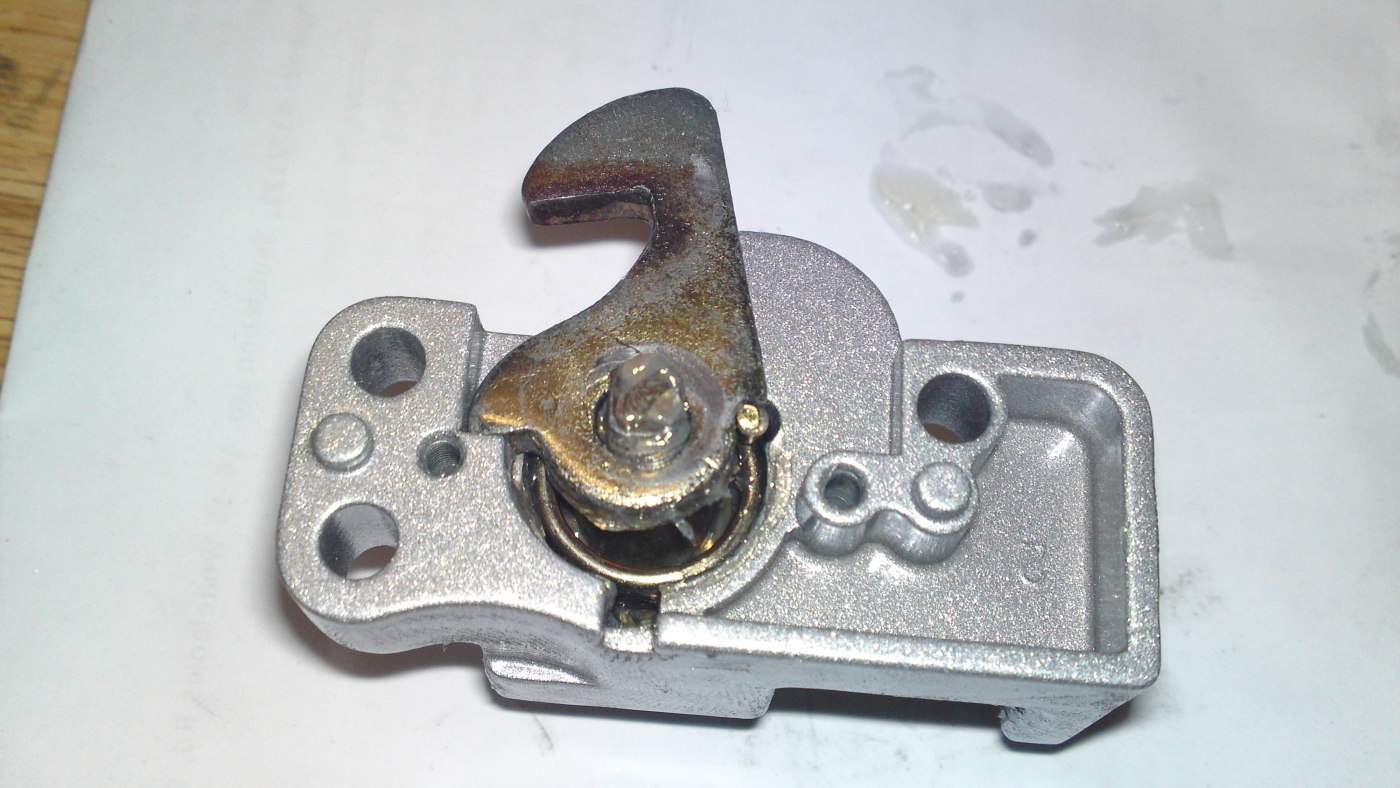

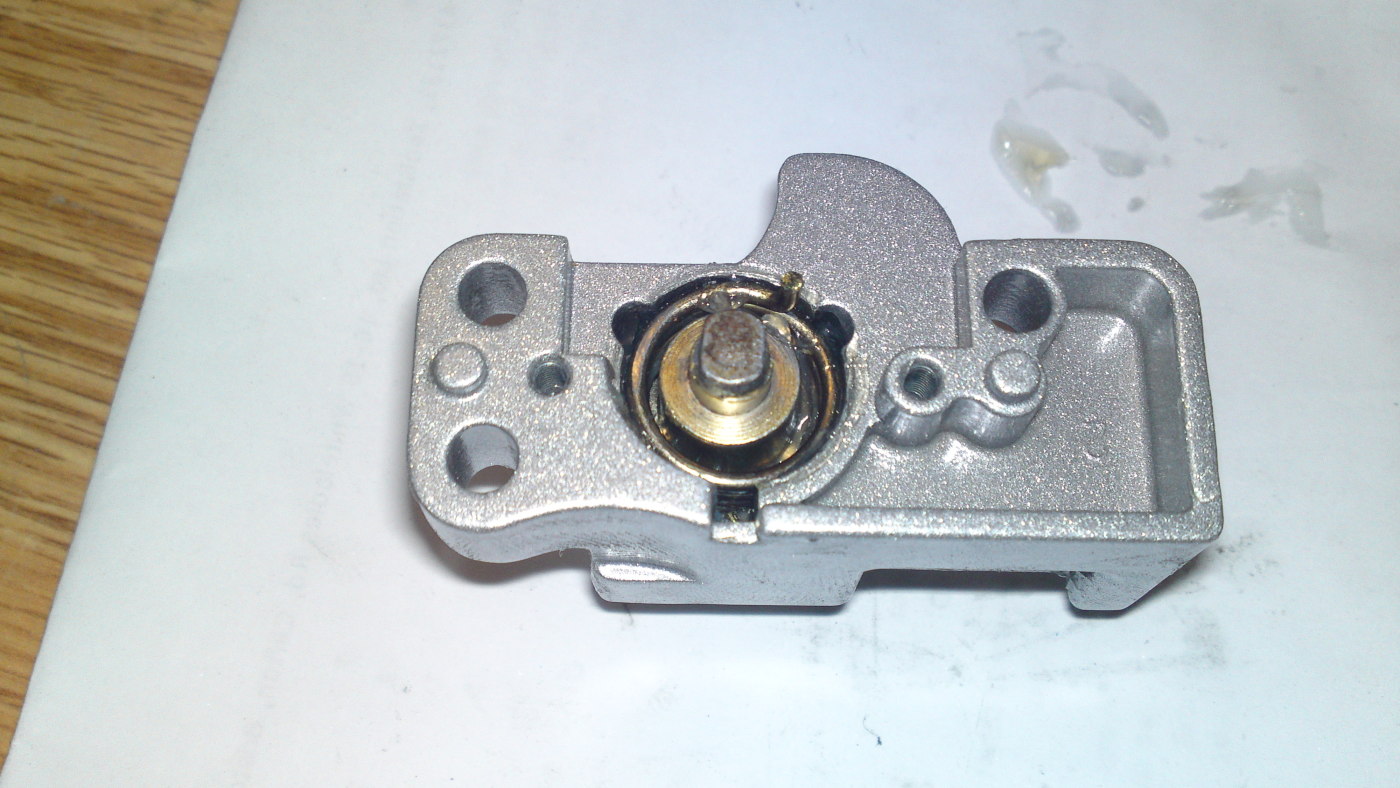

Remove circular return spring.



Suzuki GT750 seat lockSeat Lock catch

Pull out the central shaft.

Suzuki GT750 seat lockSeat Lock catch

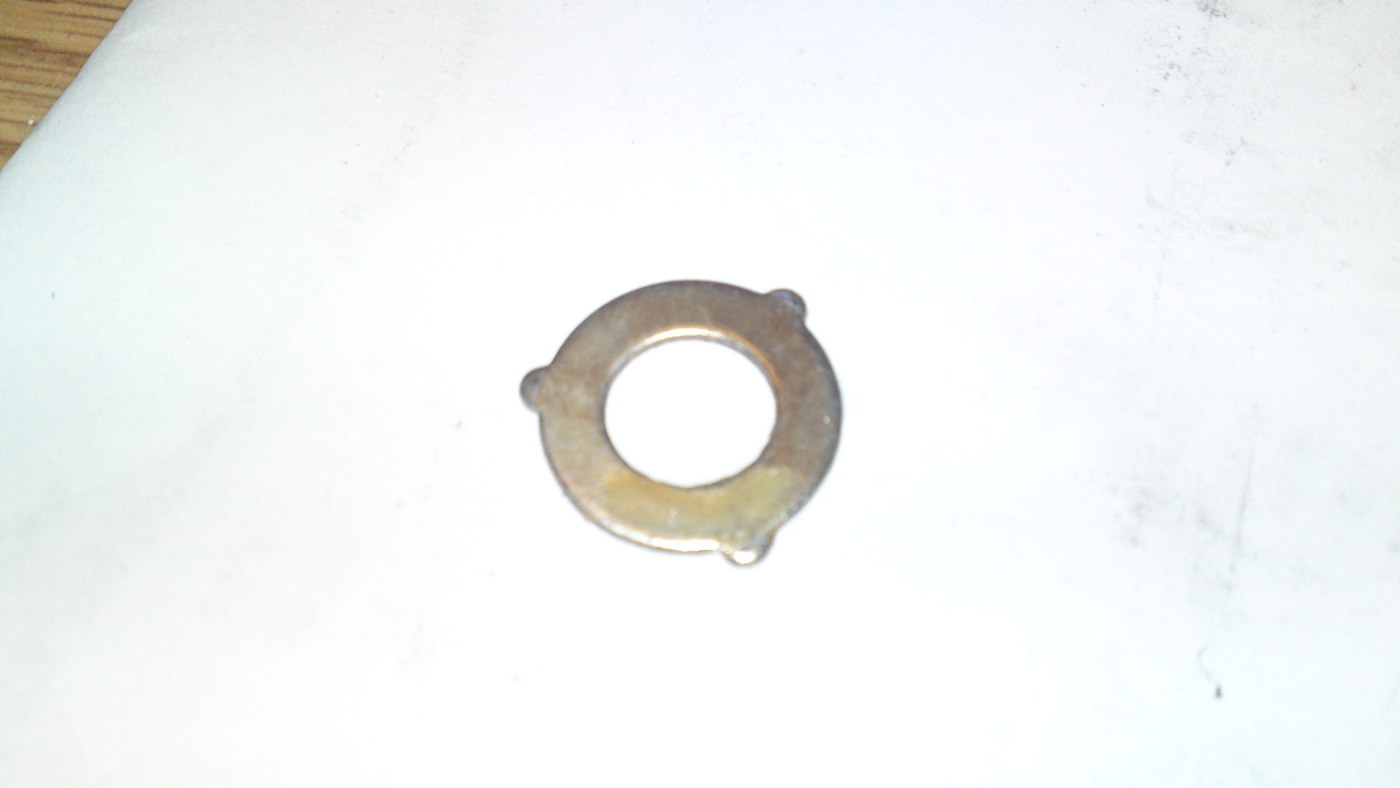

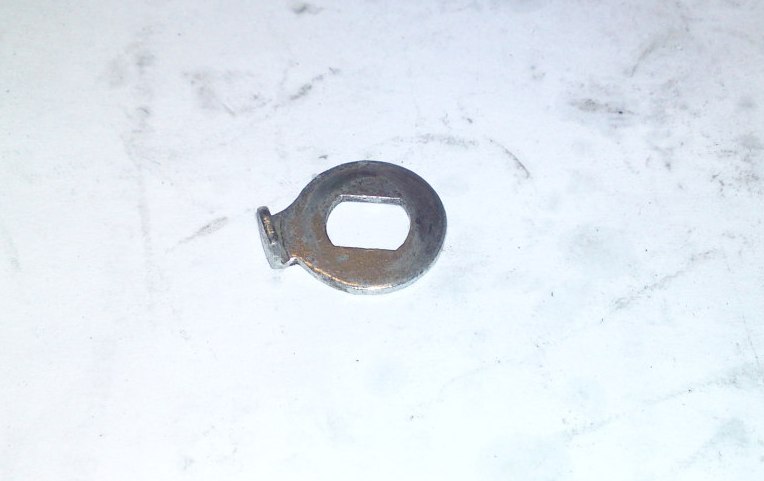

Take out the plate that has 3 small location lugs, this one can be fiddly.

Suzuki GT750 seat lockSeat Lock catch

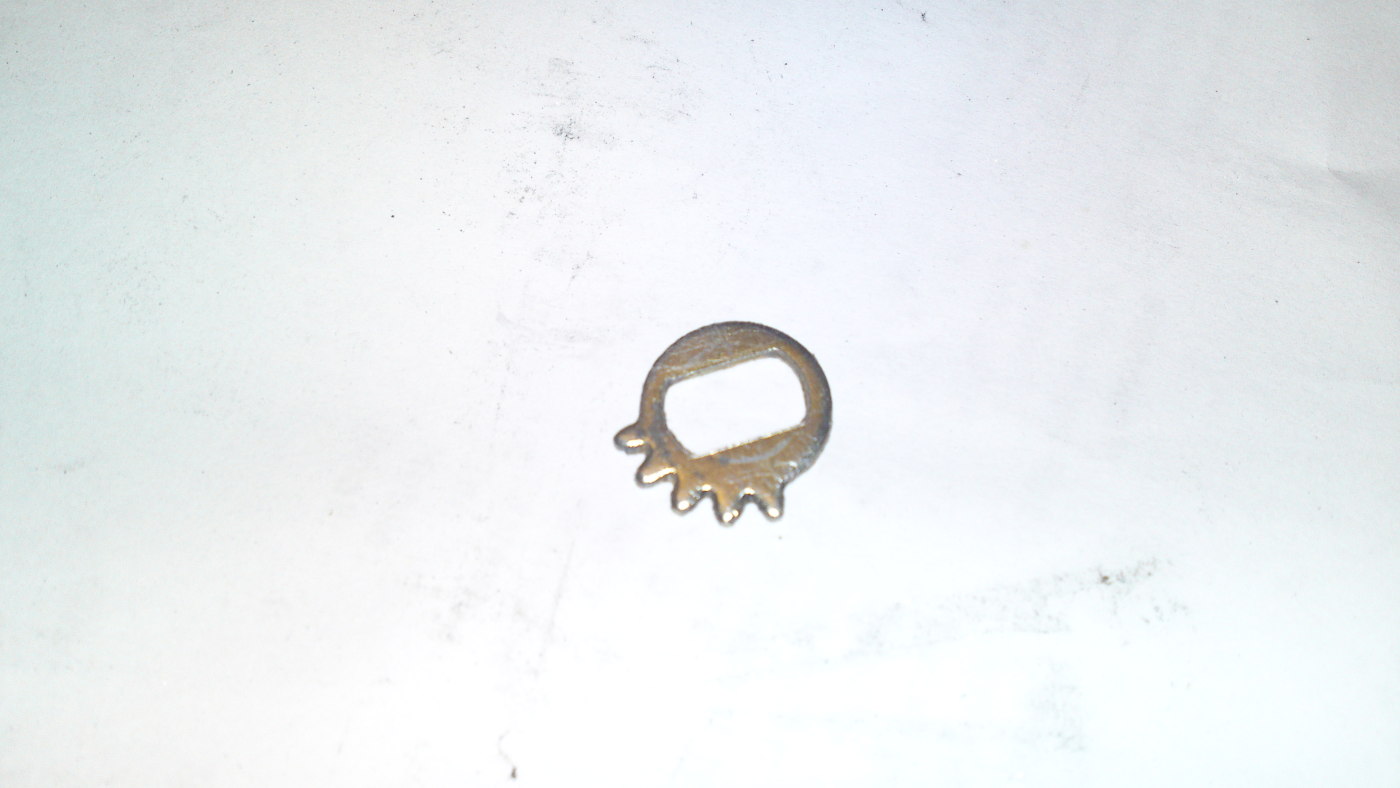

Remove the plate which looks like it has 5 teeth on it, something like tweezers or very small long nosed pliers will do.



Suzuki GT750 seat lockSeat Lock catch

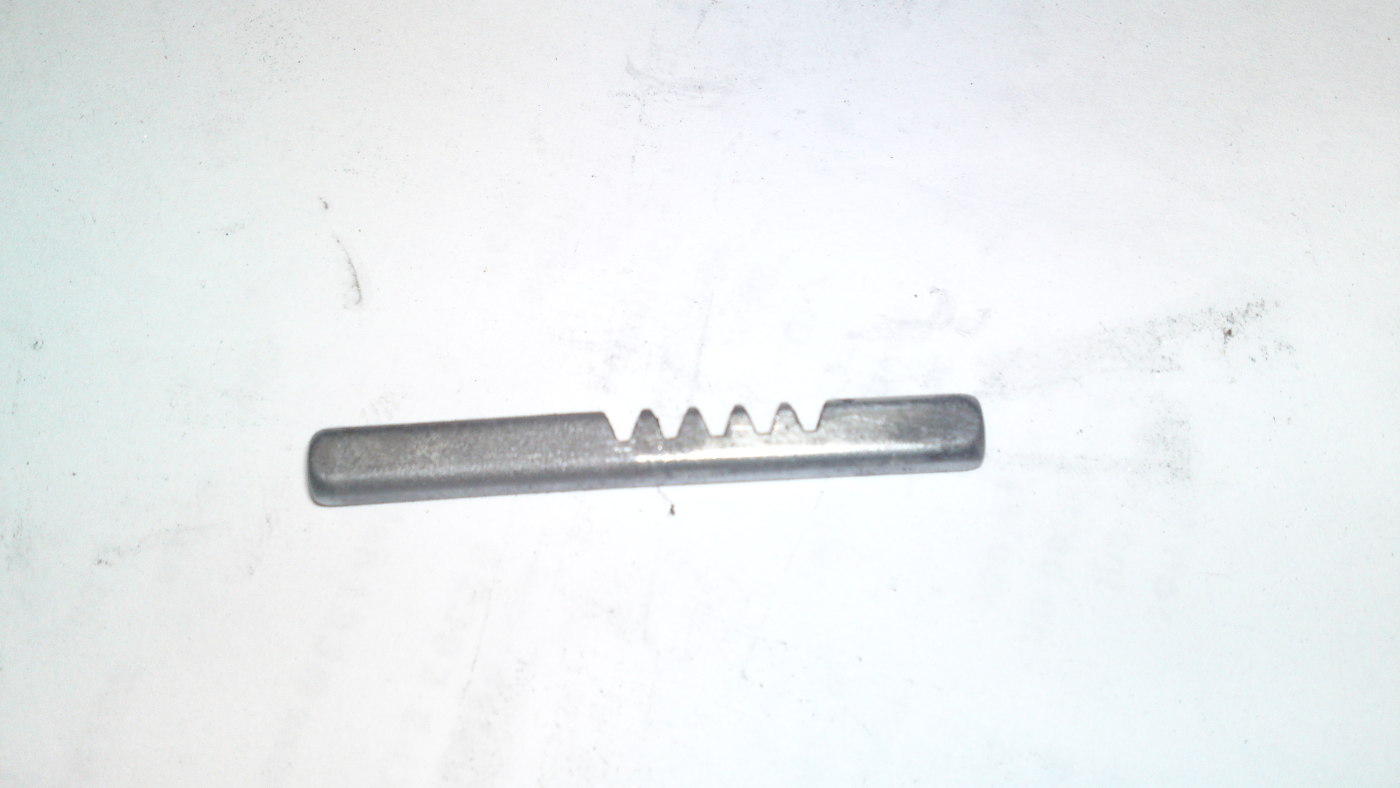

Need to turn over seat lock and slide out the helmet lock shaft.

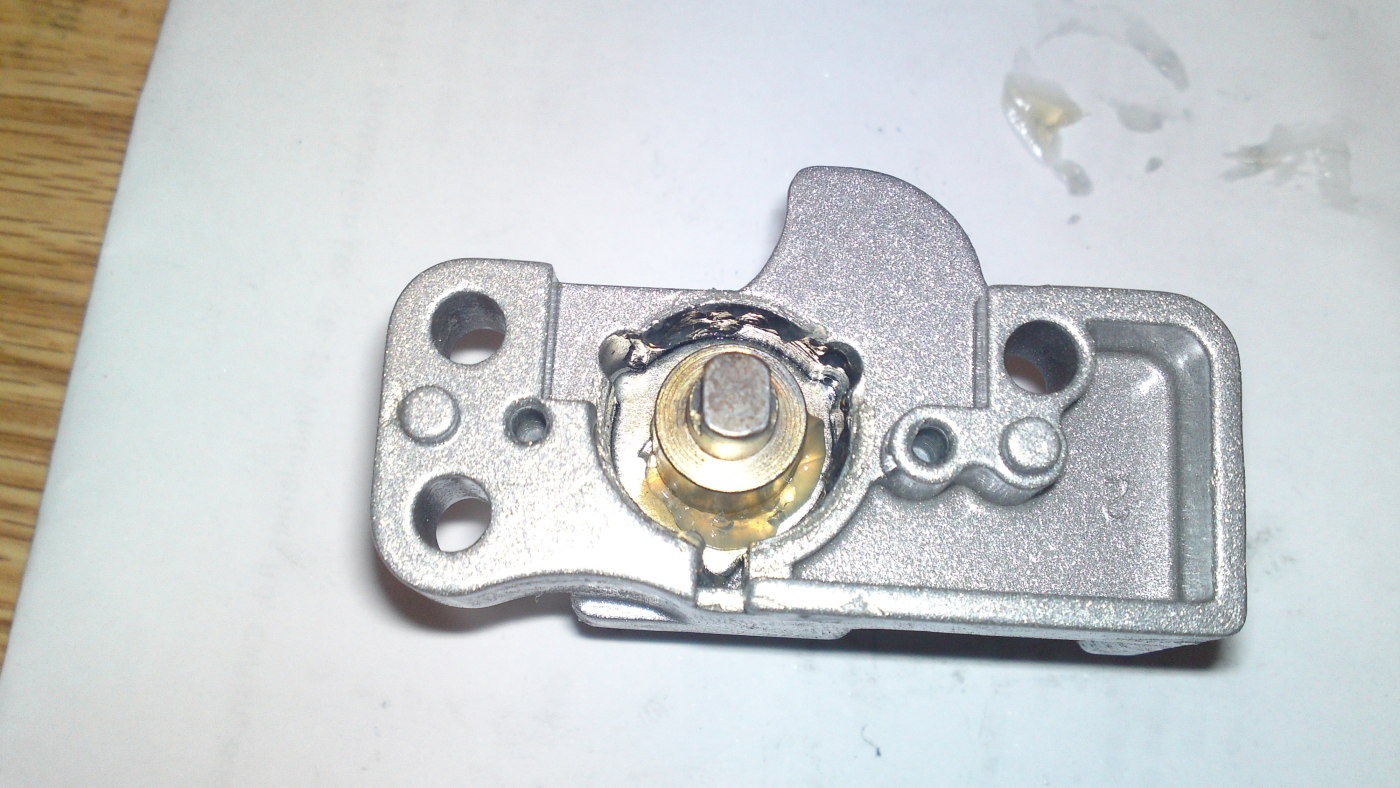

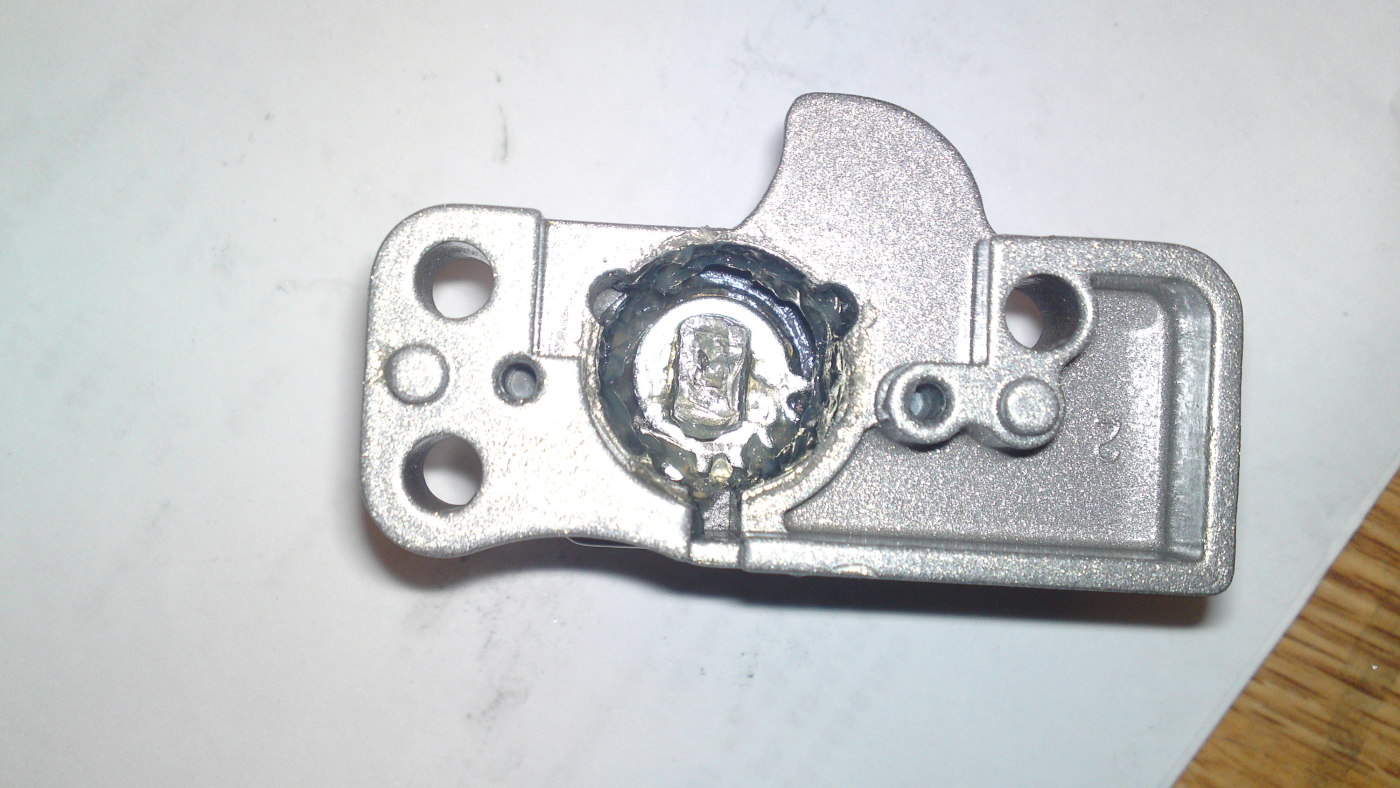

Suzuki GT750 seat lockThe only thing left to do is to remove the cylinder lock, this lock I stripped down a couple of days before and has been cleaned and greased up, the brass tab may not look the same colour or be visible as will be covered in years of crap, but it will be there somewhere, carb cleaner sprayed inside should help.

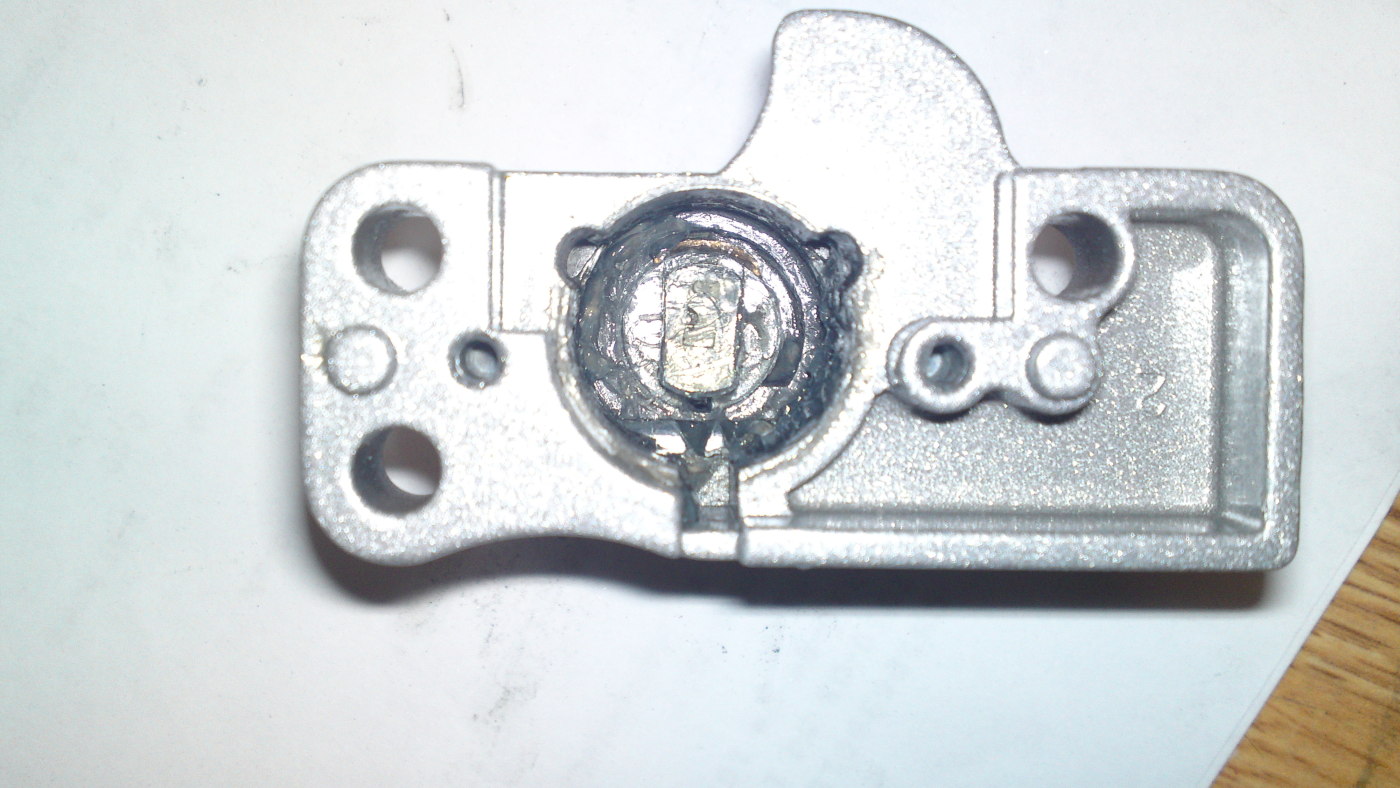

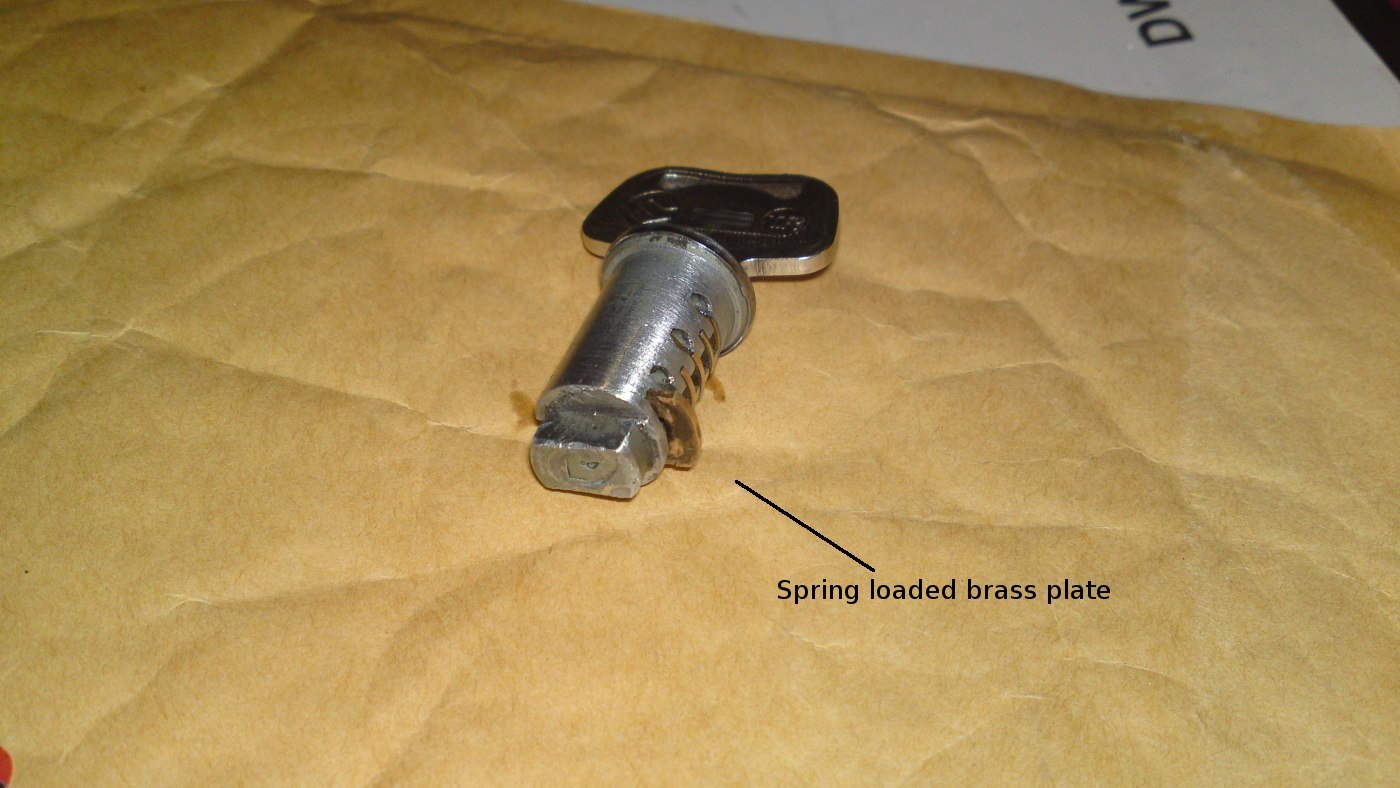

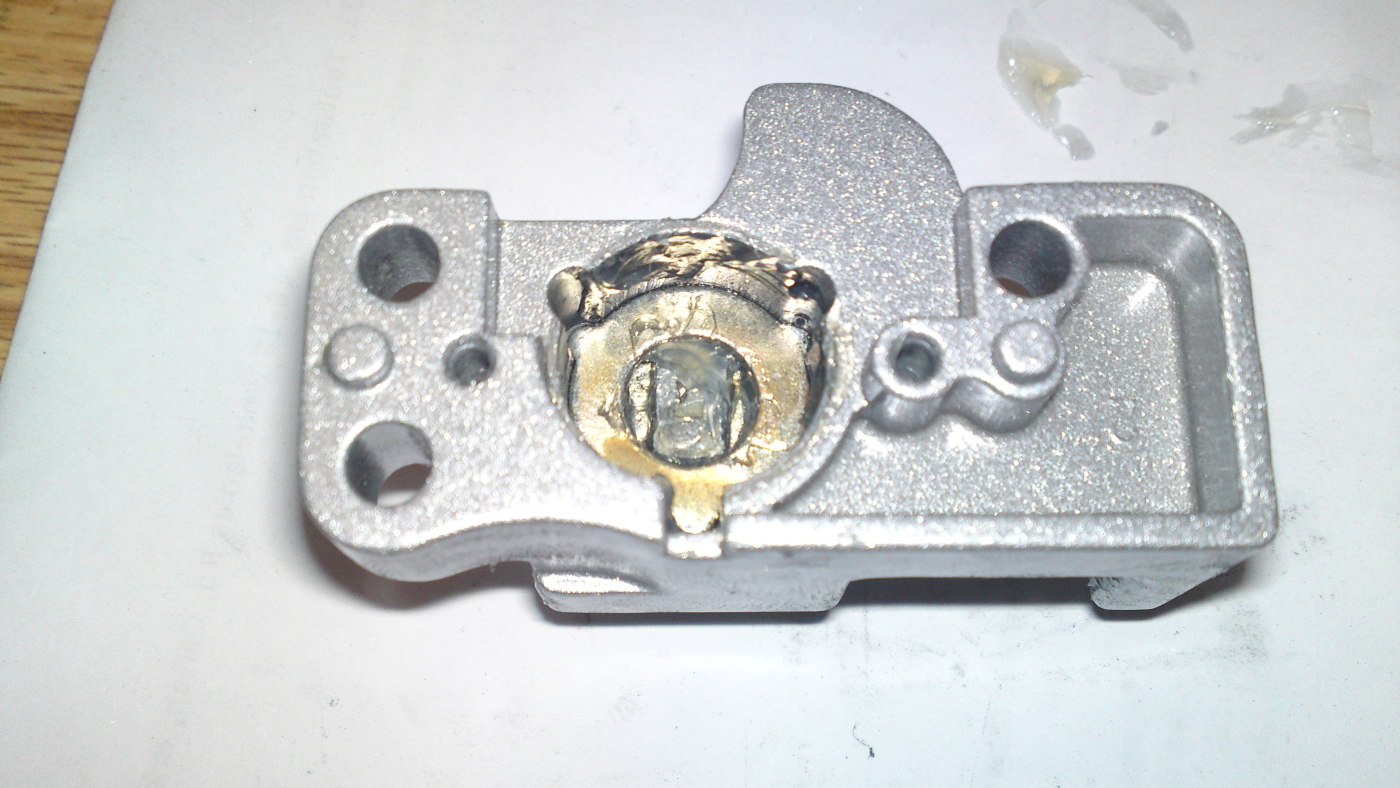

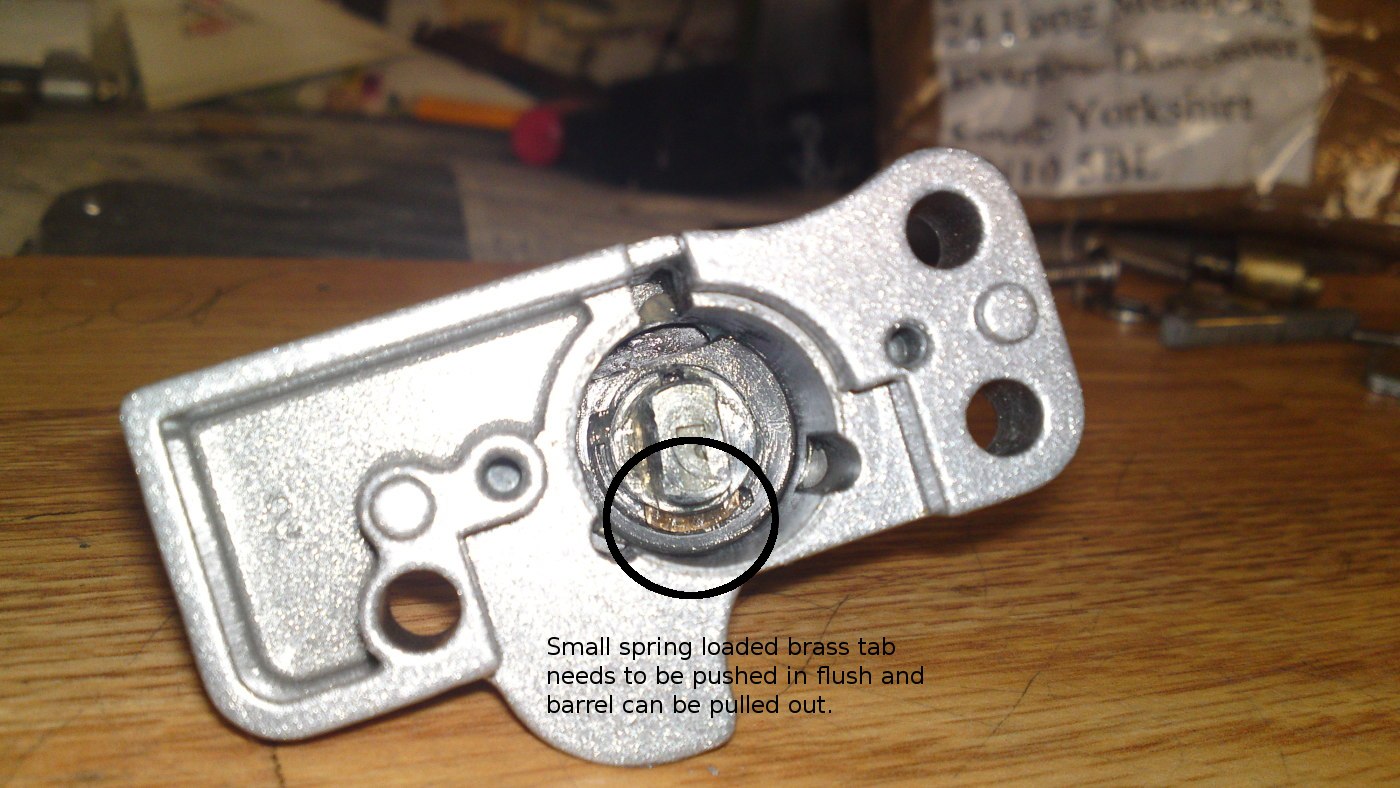

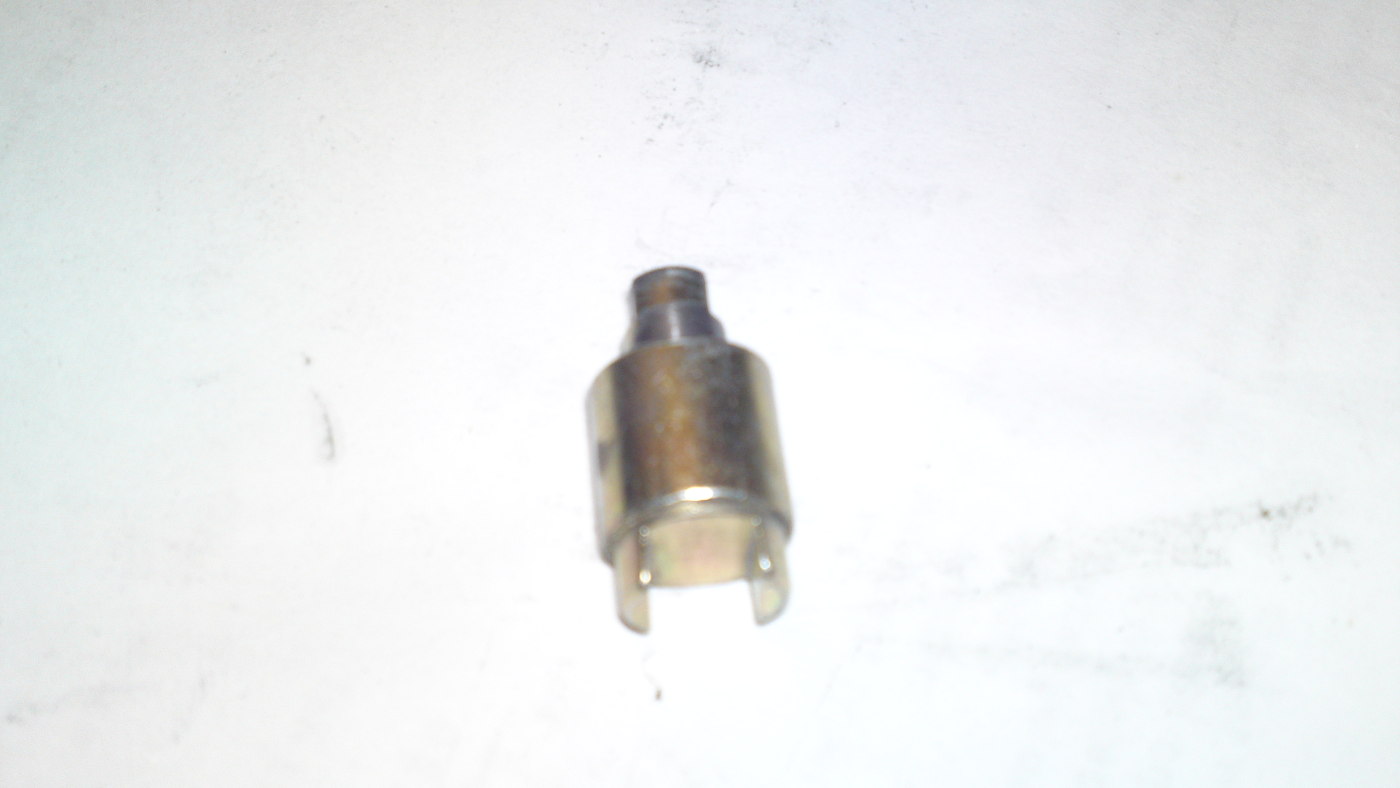

Suzuki GT750 seat lockThe brass tab needs to be pushed in towards the centre of the cylinder with the key in the lock and then the cylinder can easily slide out by pulling with the key, if there is any resistance either the tab is not pushed in flush or lock not rotated to the correct position.

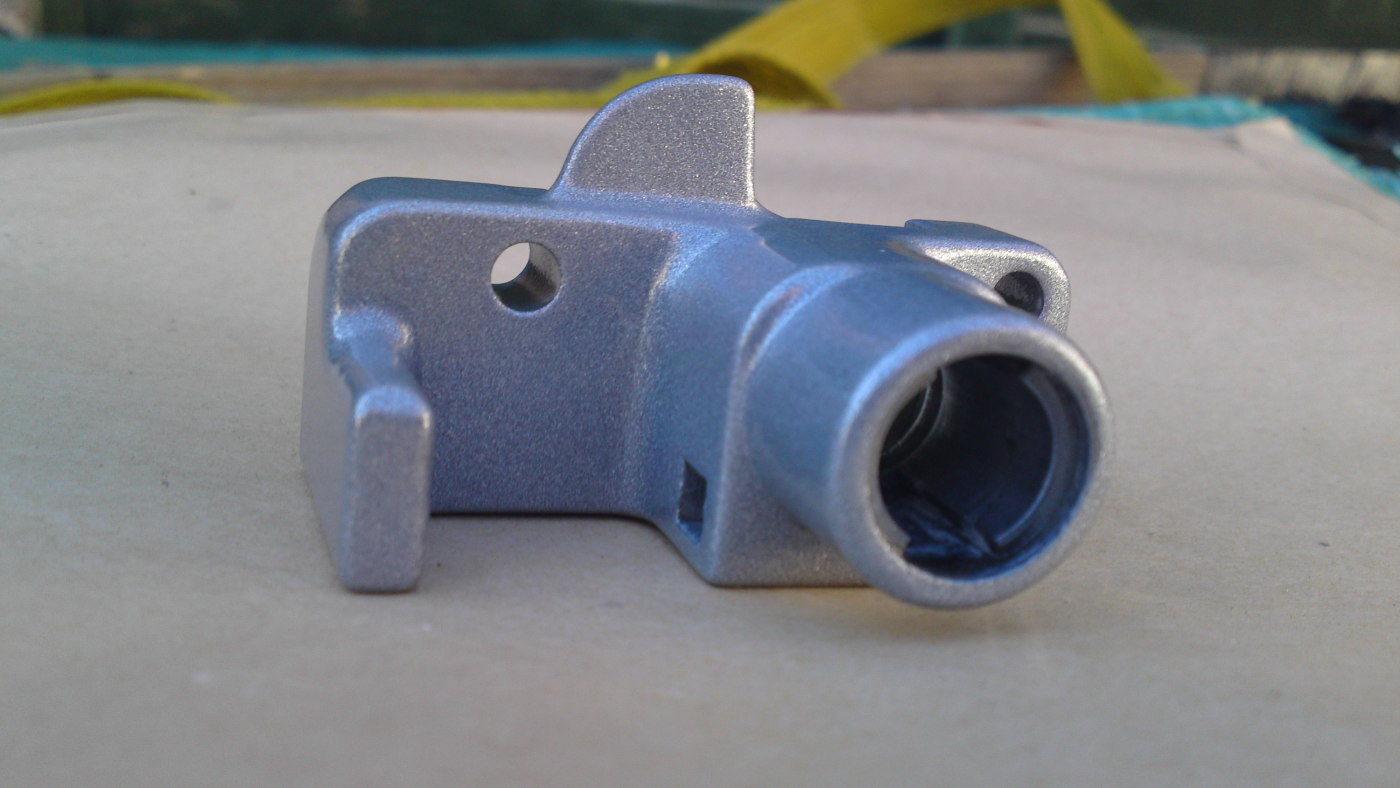

Suzuki GT750 seat lockEvery thing stripped and ready to paint, electroplate or just clean up. This one has been powder coated in metallic silver.

Suzuki GT750 seat lockPowder coated in cobalt candy over the top of the metallic silver.

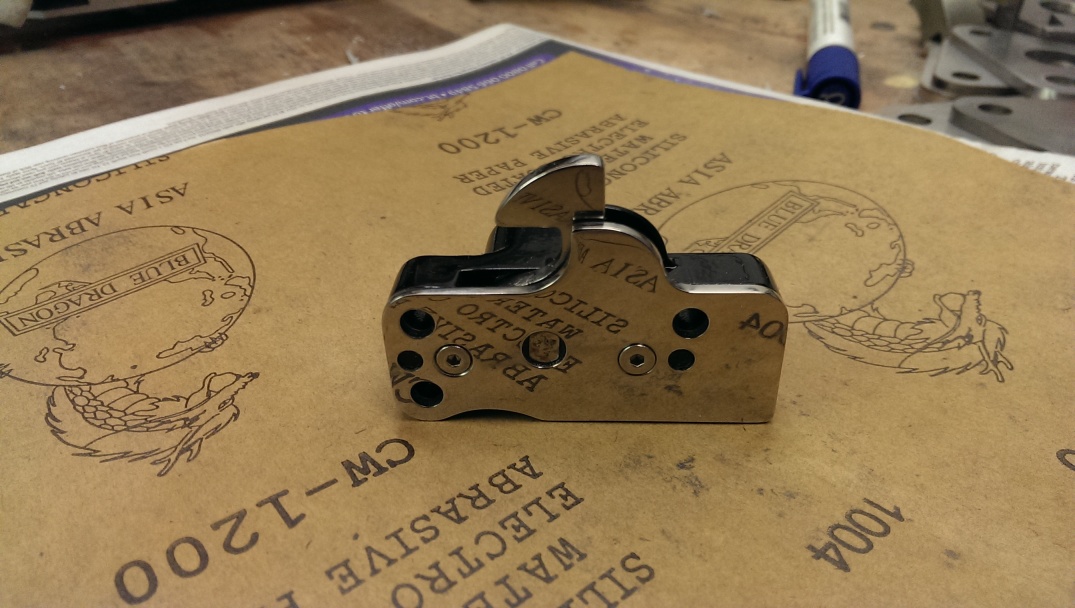

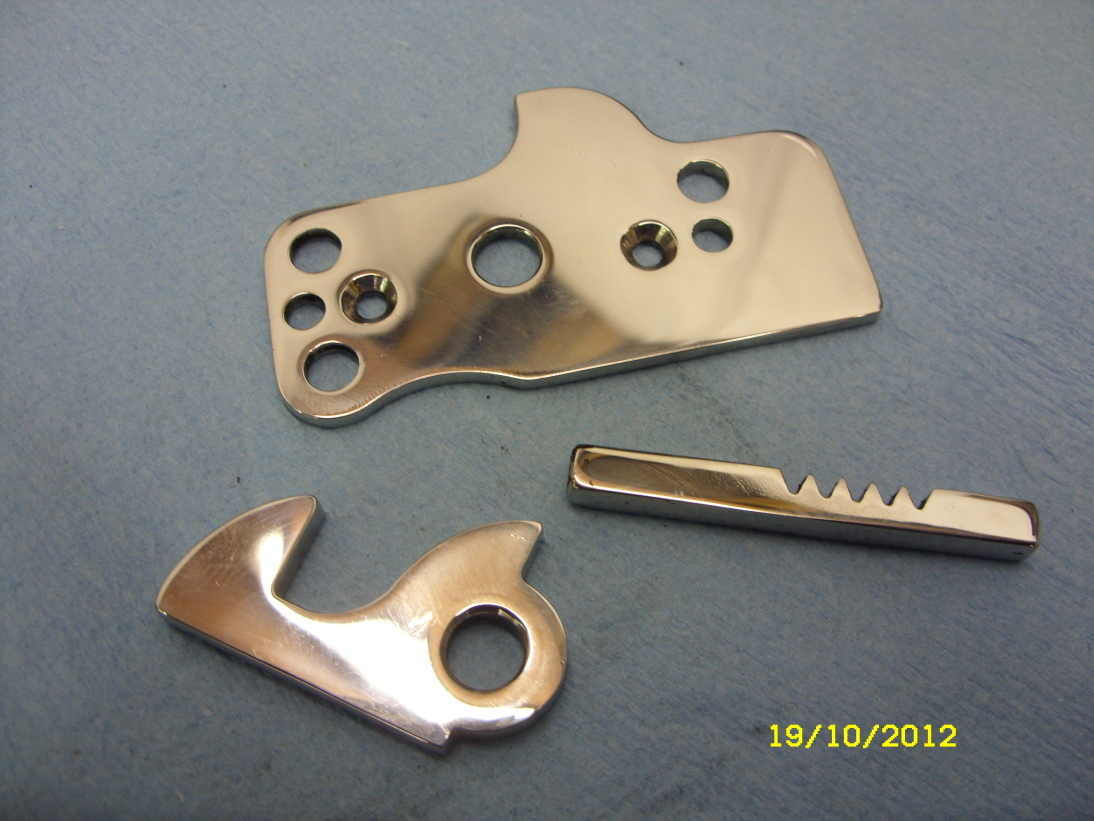

Suzuki GT750 seat lockStainless steel back, latch and helmet bar.

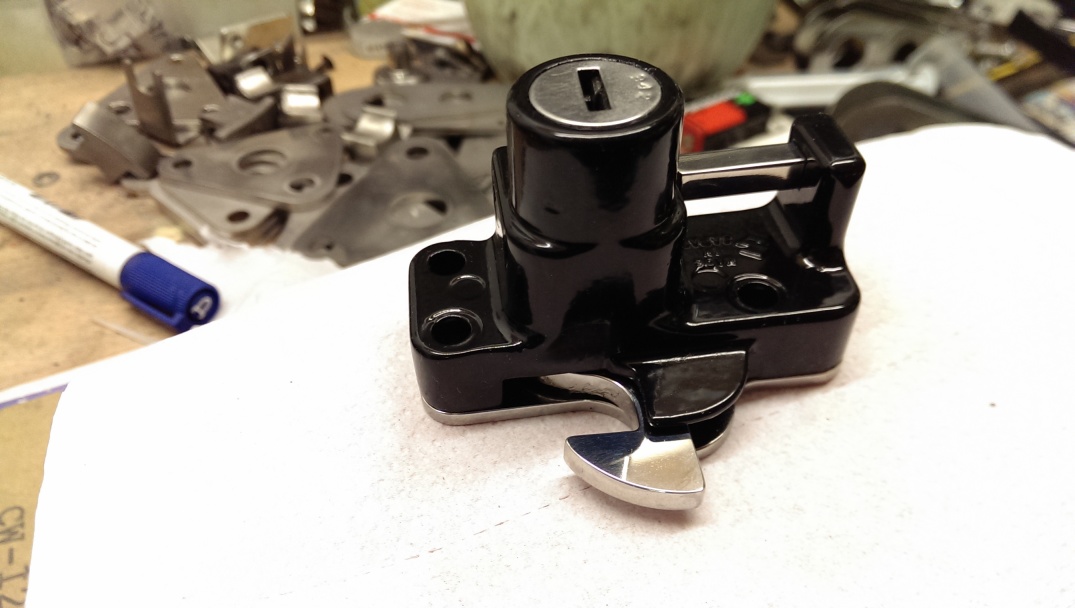

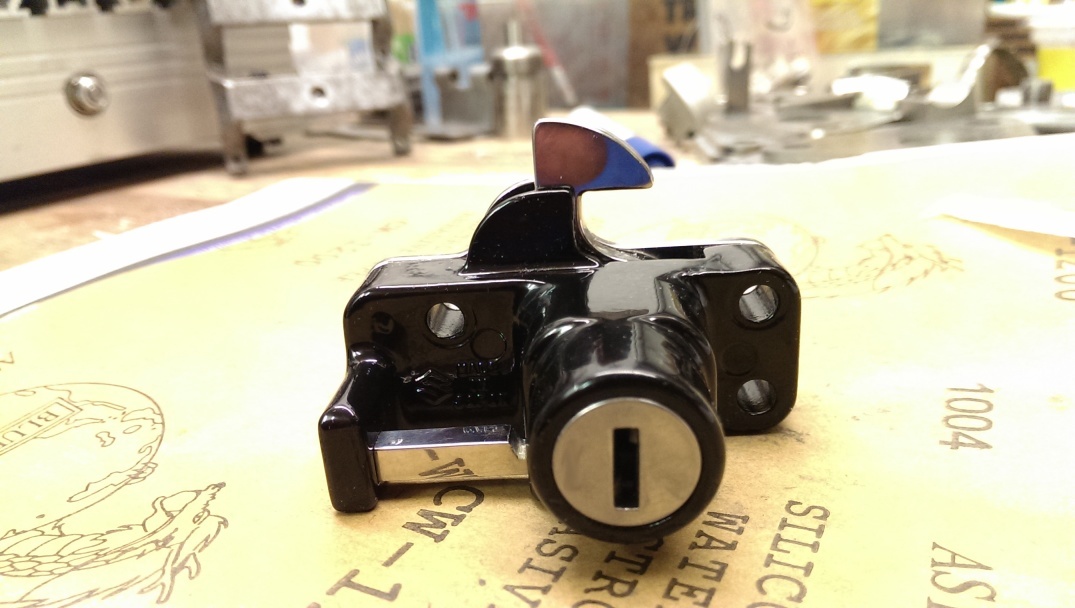

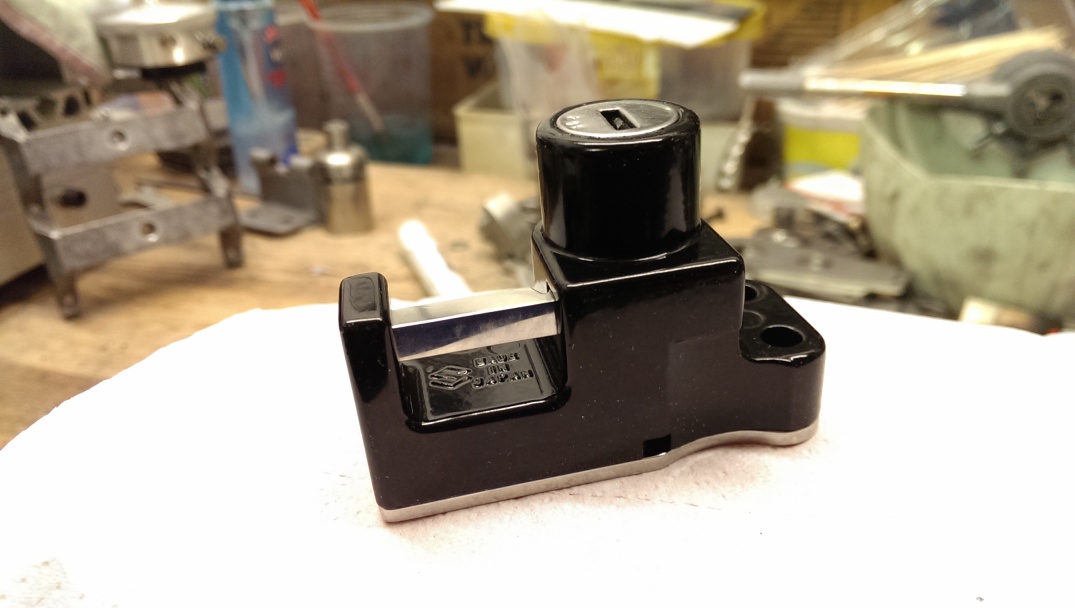

Suzuki GT750 seat lockReassembled with stainless steel back, latch and helmet bar.

Suzuki GT750 seat lock

Suzuki GT750 seat lockThis is a few photos of one that was sent to me to be powder coated in satin black and the stainless parts fitted.

Suzuki GT750 seat lockSuzuki GT750 seat lockSuzuki GT750 seat lock
